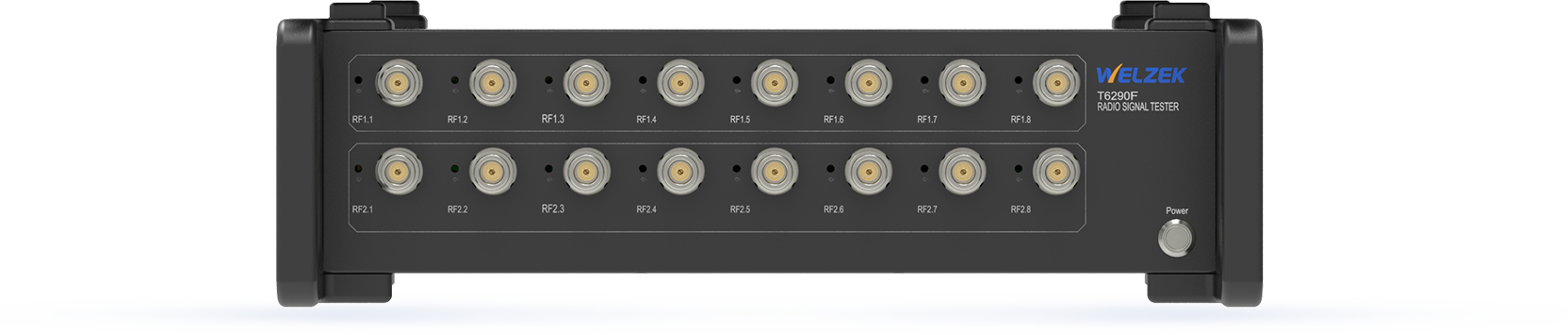

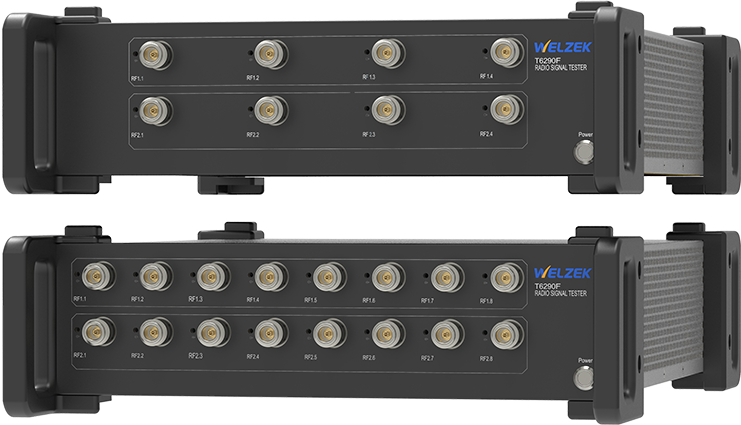

T6290FWireless Signal Tester

T6290F
CE Marking
RoHS
MET Certification
FCC Compliance Certification
Multi-Scenario High Performance Full Compatibility

Providing comprehensive and precise testing capabilities

Dual RF Channels

Up to 16 full-duplex RF ports
Application Scenarios

R&D and Production
Unified, Streamlined User Interface
High Performance

Wide frequency range: 5 MHz to 10 GHz

Ultra-wide analysis bandwidth: 2 GHz
High Flexibility

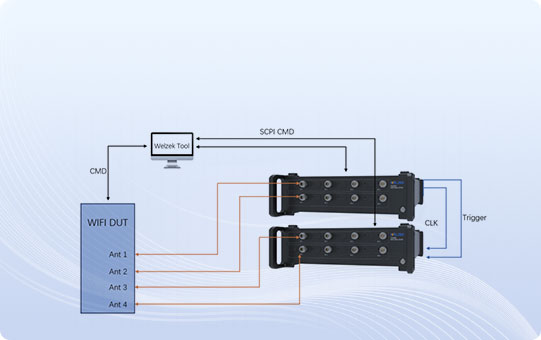

Supports 4x4 MIMO, 8x8 MIMO, and 16x16 MIMO testing
Supports 200+ Mainstream Chips
Sustainably Scalable Product Capabilities
Basic Parameters
Channels and Ports
2 channels,8/16 TX/RX full duplex ports
Frequency Range
5MHz to 10GHz
Bandwidth
2GHz
Power Measurement Accuracy
+/-0.5dB
Integrated Phase Noise
< 0.13 degrees (1kHz to 100MHz)
VSG Output Power Range
-130dBm至+15dBm
VSA Maximum Input Power
+34dBm（CW）
EVM
< -50 dB, at 7000MHz,160MHz MCS13
< -49 dB, at 7000MHz,320MHz MCS13
Enquiry Details
For the Full Wireless Industry Chain
RF Testing for Production & R&D

Automated Test Platform Simplifies Test Steps
Covers Validation, Lab & Factory Production

Mobile Devices
Smartphones Tablets Displays AR Glasses
Automotive
Intelligent Cockpit Wireless Anchor Point Digital Car Key
IoT
Wireless Router Smart Lock Gaming Console AI Device Satellite Terminal
Chip & Lab
FEM SOC SIP
