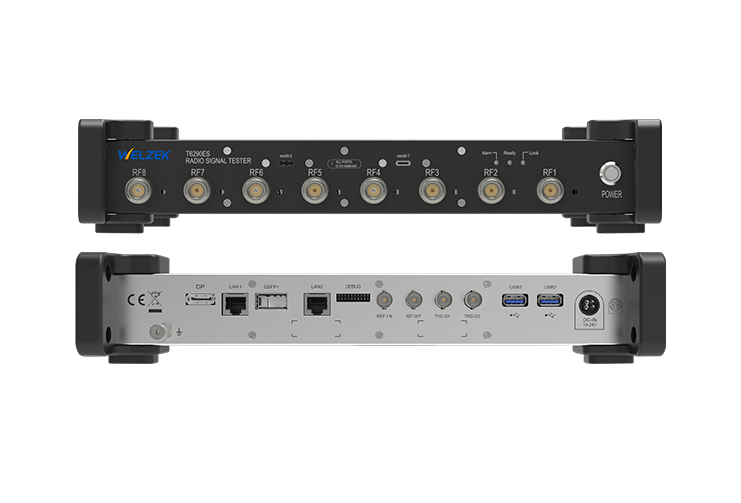

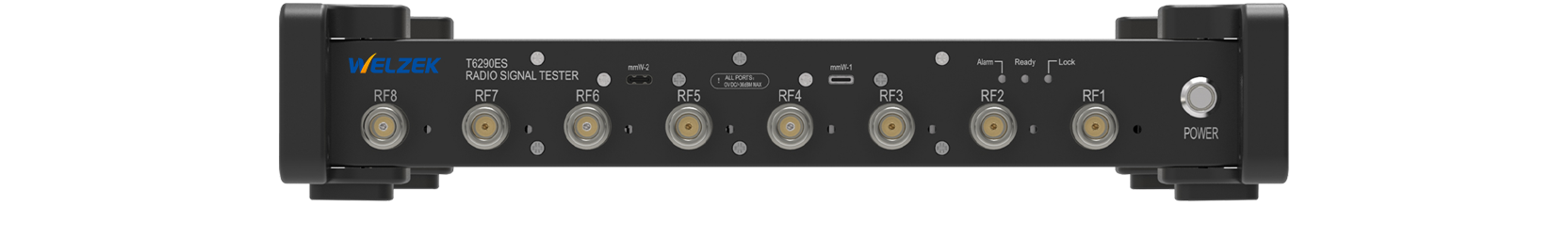

T6290ESWireless Signal Tester

T6290ES
Product Features

Single RF Channel

8 Full-Duplex RF Ports
Application Development Tools

Terminal Test Suite/RF Development Suite
Unified, Streamlined User Interface
High Performance

Supports 70 MHz – 8 GHz

TX IF Bandwidth: 500 MHz, RX Bandwidth: 400 MHz
Basic Parameters
Channels and Ports
1 channel, 8 full-duplex RX/TX ports
Frequency Range
70 MHz – 8000 MHz
Frequency Setting Resolution
0.1 Hz, nom.
Frequency Accuracy
≤ 0.05 ppm
Max Analysis Signal Bandwidth
400 MHz
Max Transmit Signal Bandwidth
500 MHz
Standard Supported
IEEE 802.11a/g/p/n/b/g/ac/ax/be
RF Bandwidth
Up to 320 MHz
Enquiry Details
Application Scenarios

Mobile Devices
Smartphones
Core Devices
Chip Module
