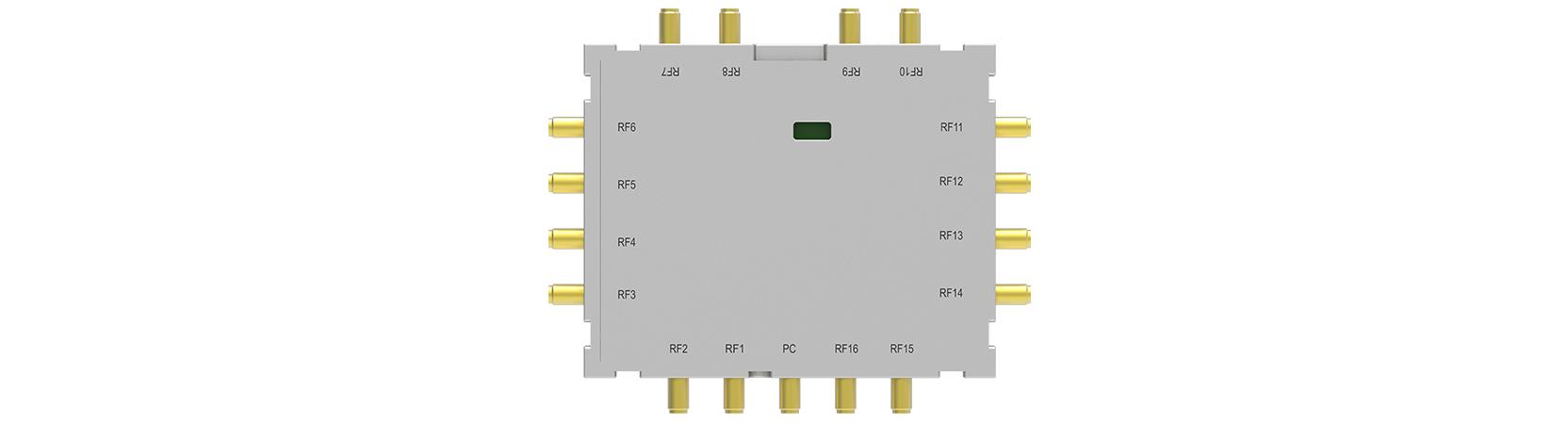

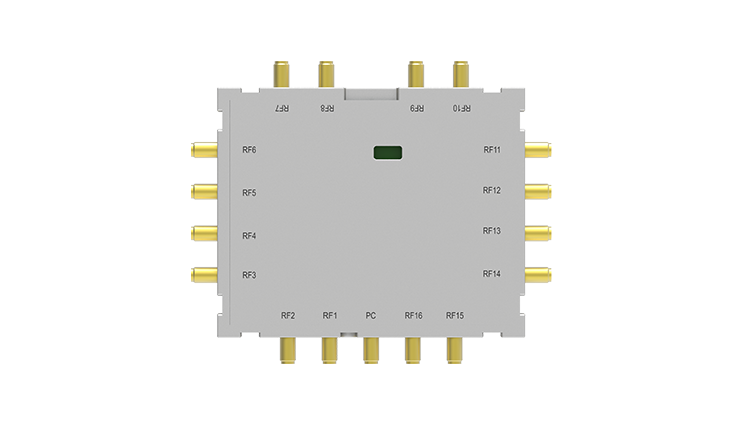

S-16TRF SWITCH

S-16T
Features

16 Independently Controllable RF Ports

Flexible Switching Between RF Channels

Simultaneous Multi-Band Processing
Wide Frequency Range

0.05GHz-8GHz
Ultra-Low Insertion Loss, Ultra-High Isolation, Ultra-Low Switching Time
Works with Tester

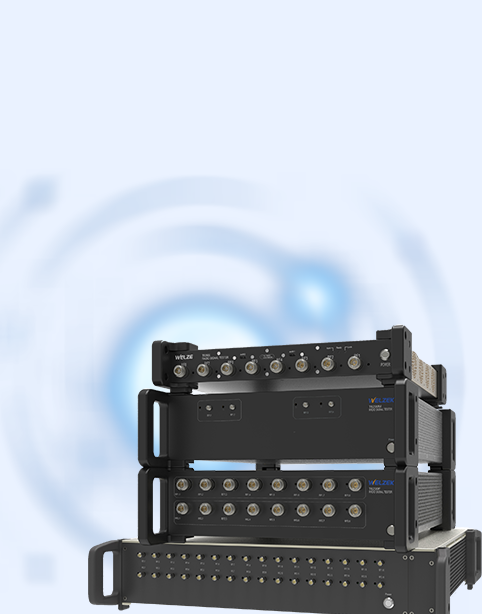

Port Expansion for T6290 Series Tester
Basic Parameters
RF Frequency
0.05-8GHz
INSERTION LOSS
<3.0 dB (0.05GHz-2.40GHz)
<4.0 dB (2.40GHz-5.80GHz)
<5.0 dB (5.80GHz-8.00GHz)
Return Loss （Common port）
< -15dB
Return Loss （Output port）
< -15dB
ISOLATION
>60dB
