T6290EWireless Signal Tester

T6290E
RoHS
MET Certification
Multi-Scenario High Performance Full Compatibility

Providing comprehensive and precise testing capabilities

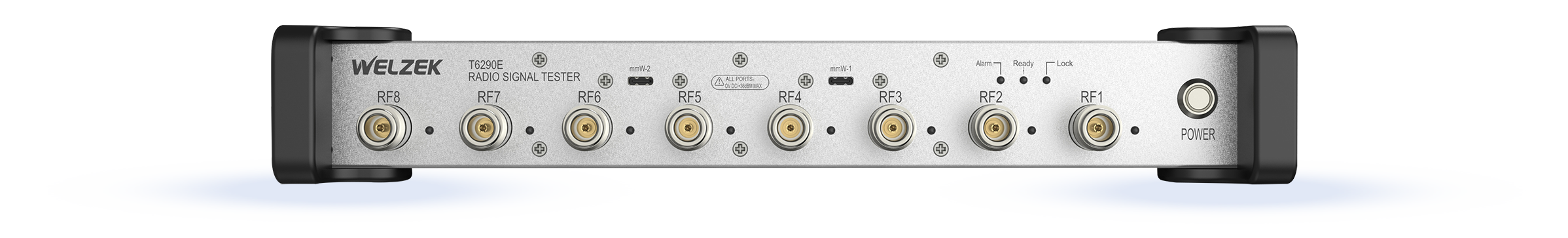

Single RF Channel

8 full-duplex RF ports
Application Scenarios

Mass Production & Production Line
Unified, Streamlined User Interface

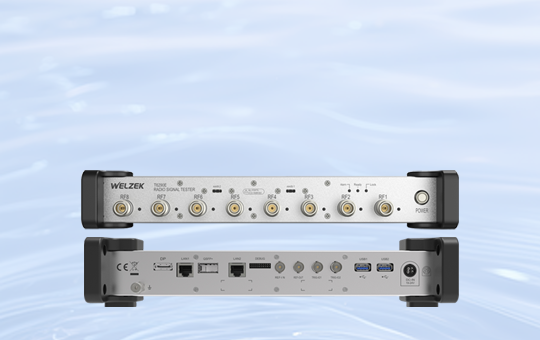

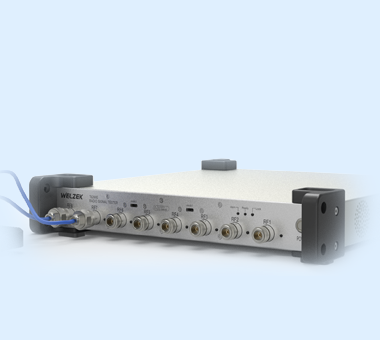

Compact

Compact and lightweight

Saves valuable space

Easy to move and maintain

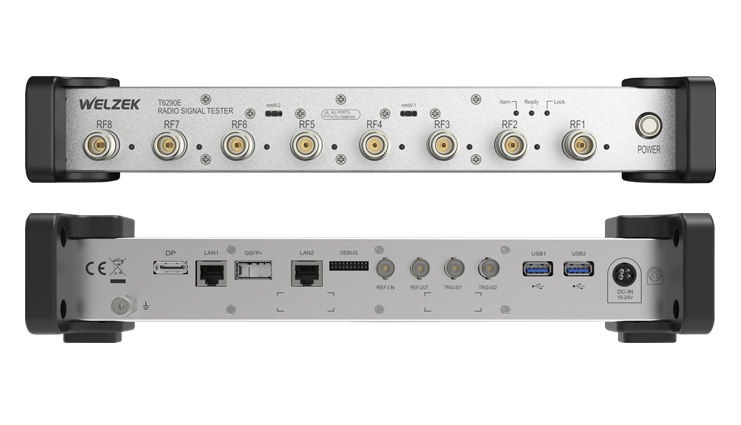

Rich Peripheral Interfaces

Versatile interfaces for easy test environment integration

Wireless RF ports, USB, DP display interface, Ethernet, trigger (IN/OUT)
Supports 200+ Mainstream Chips
Sustainably Scalable Product Capabilities
Basic Parameters
Channels and Ports
1 channel, 8 TX/RX full duplex ports
Frequency Range
70MHz - 8GHz
Bandwidth
500MHz
Frequency Setting Resolution
0.1 Hz
Frequency Accuracy
≤0.05ppm
Max Tx Signal Bandwidth
500MHz，Center frequency from 600MHz to 8000MHz
Max Analysis Bandwidth
400MHz，Center frequency from 200MHz to 8000MHz
Dimensions
345.4 mm (W) × 68.2 mm (H) × 400.1 mm (D) (including handle and RF connectors)
Enquiry Details
For the Full Wireless Industry Chain
RF Testing for Production & R&D

Automated Test Platform Simplifies Test Steps

Mobile Devices
Smartphones Tablets Displays AR Glasses
Automotive
Intelligent Cockpit Wireless Anchor Point Digital Car Key
More
IoT
Wireless Router Smart Lock Gaming Console AI Device Satellite Terminal
Chip & Lab
