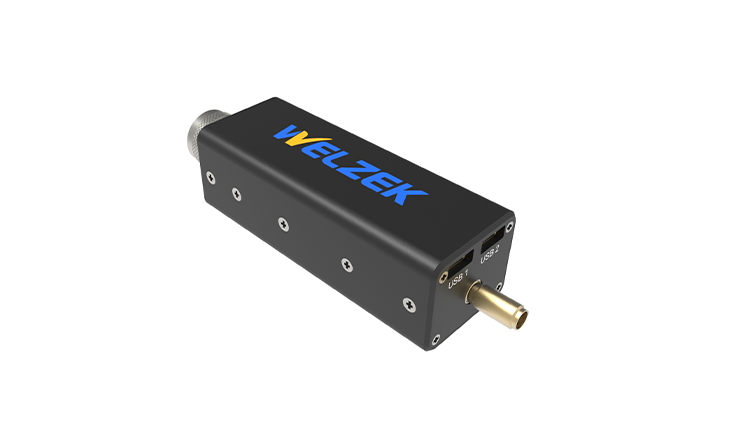

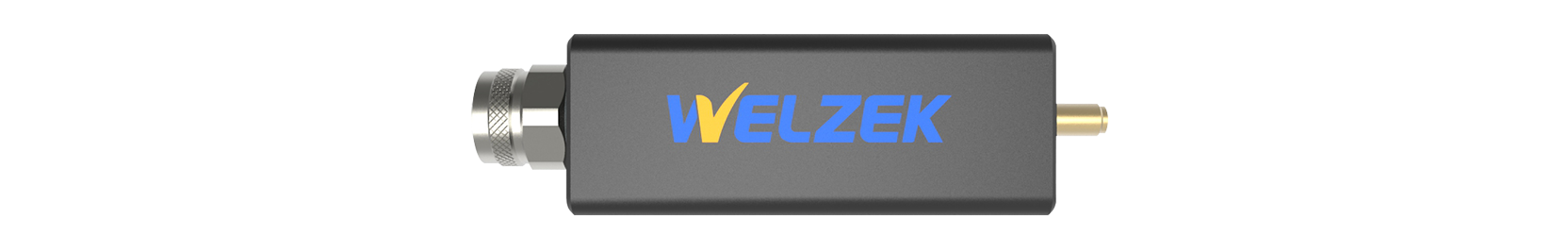

TDUTime Delay Unit

TDU

Features

RF Delay Tuning

For 6–10 GHz RF Signals

Compact High Integration

Test System & Link Integration

For T6290 Series Tester

Precise RF Channel Delay Tuning for UWB AoA Measurement

Easy-to-Use

Single USB for power & configuration

Easy to use, flexible deployment

Basic Parameters

Frequency Range: 6 GHz to 10 GHz

Max Input Power: 18 dBm

Insertion Loss: <27 dB

VSWR: <1.90

Dimensions: 120.4 mm × 27.6 mm × 32.9 mm

Weight: 200 g
